MAX860, MAX861 50mA、频率可选的开关电容电

2011-05-30 21:27:27来源: 互联网
The MAX860/MAX861 charge-pump voltage converters invert input voltages ranging from +1.5V to +5.5V, or double input voltages ranging from +2.5V to +5.5V. Because of their high switching frequencies, these devices use only two small, low-cost capacitors. Their 50mA output makes switching regulators unnecessary, eliminating inductors and their associated cost, size, and EMI. Greater than 90% efficiency over most of the load-current range, combined with a typical operating current of only 200µA (MAX860), provides ideal performance for both battery-powered and board-level voltage-conversion applications.

A frequency-control (FC) pin provides three switching-frequencies to optimize capacitor size and quiescent current and to prevent interference with sensitive circuitry. Each device has a unique set of three available frequencies. A shutdown (active-low SHDN) pin reduces current consumption to less than 1µA. The MAX860/MAX861 are suitable for use in applications where the ICL7660 and MAX660's switching frequencies are too low. The MAX860/MAX861 are available in 8-pin µMax and SO packages.

MAX860, MAX861 关键特性
  • 8-Pin, 1.11mm High µMAX Package
  • Invert or Double the Input Supply Voltage
  • Three Selectable Switching Frequencies
  • High Frequency Reduces Capacitor Size
  • 87% Efficiency at 50mA
  • 200µA Quiescent Current (MAX860)
  • 1µA Shutdown Supply Current
  • 600mV Voltage Drop at 50mA Load
  • 12Ω Output Resistance
  • MAX860, MAX861 pdf datasheet

    MAX860, MAX861 应用/使用

    手持式仪表(PDA、掌上电脑)
  • 接口供电
  • 医疗仪器
  • 运算放大器电源
  • 便携式计算机

    MAX860, MAX861 应用电路

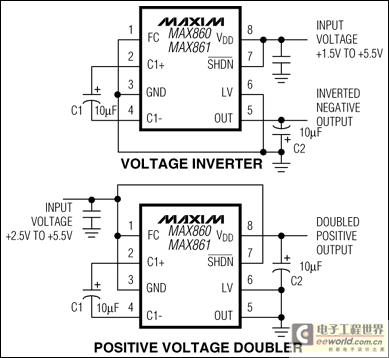

    MAX860,MAX861:典型工作电路
    典型工作电路
