基于LinkSwitch-PH设计的14W TRIAC调光L

2011-05-10 11:29:24来源: 互联网
本文介绍了LinkSwitch-PH系列主要特性,功能方框图, TRIAC调光14W 和7W LED驱动器电路图,以及TRIAC调光14W LED驱动器参考设计主要指标,电路图和材料清单(BOM).PowerInt 公司的LinkSwitch-PH系列集成了725V功率MOSFET,连续模式PWM控制器,用于自偏置的高压开关电流源,频率抖动,逐个周期的电流限制以及延迟热关断电路,大大地简化PF大于0.9, TRIAC调光的LED驱动器的设计,主要用在离线LED驱动器.

The LinkSwitch-PH dramatically simplifies implementation of LED drivers requiring PF >0.9, TRIAC dimmer capability and high efficiency. The single-stage PF and constant current controller eliminates passive circuitry required for power factor correction and electrolytic bulk capacitor. The advanced primary-side control techniques used by the LinkSwitch-PH device provide accurate constant current control while eliminating the need for an optocoupler and secondary-side current control circuitry.

LinkSwitch-PH incorporates a 725 V power MOSFET, a continuous-mode PWM controller, a high voltage switched current source for self biasing, frequency jittering, cycle-by-cycle current limit and hysteretic thermal shutdown circuitry, all in a monolithic IC.

LinkSwitch-PH系列主要特性:

Dramatically Simplifies Off-line LED Drivers

• Flicker-free phase-controlled TRIAC dimming

• Single stage power factor corrected and accurate constant current (CC) output

• Eliminates optocoupler and all secondary current control circuitry

• Eliminates all control loop compensation circuitry

• Simple primary-side PWM dimming interface

• Universal input voltage range

• Enables designs that are electrolytic-free

Accurate and Consistent Performance

• Compensates for transformer inductance tolerances

• Compensates for line input voltage variations

• Frequency jittering greatly reduces EMI filter size and costs

Advanced Protection and Safety Features

• Auto-restart for short-circuit protection

• Open circuit fault detection mode

• Automatic thermal shutdown restart with hysteresis

• Meets high voltage creepage requirement between DRAIN and all other signal pins both on PCB and at package

EcoSmart® – Energy Efficient

• Low standby power remote ON/OFF feature (<50 mW at 230 VAC)

• No current sense resistors – maximizes efficiency

• High efficiency operation, >85% achievable

Green Package

• Halogen free and ROHS compliant package

LinkSwitch-PH系列应用:

• Off-line LED driver


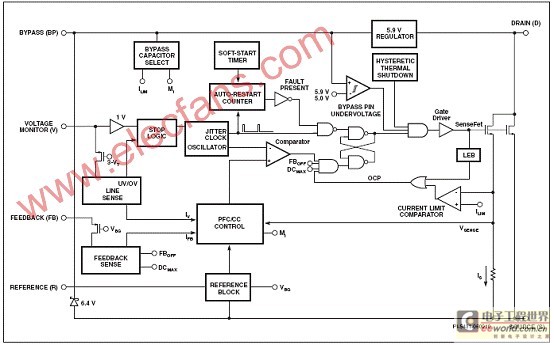

图1.LinkSwitch-PH系列功能方框图

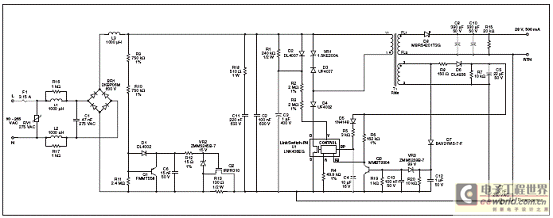

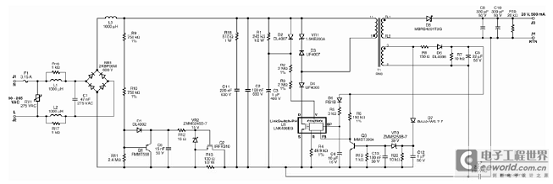

图2.LinkSwitch-PH系列TRIAC调光14W LED驱动器电路图

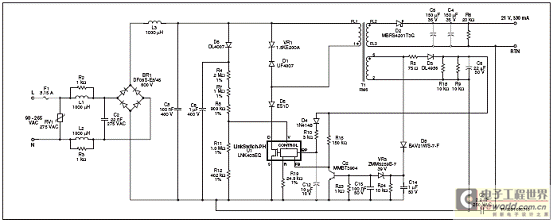

图3.LinkSwitch-PH系列TRIAC调光7W LED驱动器电路图

TRIAC调光14W LED驱动器参考设计

Reference Design Report for a High Efficiency (≥85%), High Power Factor (>0.9) TRIAC Dimmable 14 WTYP LED Driver Using LinkSwitch®-PH LNK406EG

参考设计主要特性和指标:

Superior performance and end user experience

TRIAC dimmer compatible (including low cost leading edge type)

No output flicker

>1000:1 dimming range

Clean monotonic start-up – no output blinking

Fast start-up (<300 ms) – no perceptible delay

Consistent dimming performance unit to unit

Highly energy efficient

≥85% at 115 VAC, ≥87% at 230 VAC

Low cost, low component count and small printed circuit board footprint solution

No current sensing required

Frequency jitter for smaller, lower cost EMI filter components

Integrated protection and reliability features

Output open circuit / output short-circuit protected with auto-recovery

Line input overvoltage shutdown extends voltage withstand during line faults.

Auto-recovering thermal shutdown with large hysteresis protects both components and printed circuit board

No damage during brown-out or brown-in conditions

Meets IEC 61000-4-5 ringwave, IEC 61000-3-2 Class C harmonics and EN55015 B conducted EMI

The document describes a high power-factor TRIAC dimmable LED driver designed to drive a nominal LED string voltage of 28 V at 0.5 A from an input voltage range of 90 VAC to 265 VAC. The LED driver utilizes the LNK406EG from the LinkSwitch-PH family of ICs.

LinkSwitch-PH ICs allow the implementation of cost effective and low component count LED drivers which both meet power factor and harmonics limits but also offer enhanced end user experience. This includes ultra-wide dimming range, flicker free operation (even with low cost with AC line TRIAC dimmers) and fast, clean turn on.

The topology used is an isolated Flyback operating in continuous conduction mode.Output current regulation is sensed entirely from the primary side eliminating the need for secondary side feedback components. No external current sensing is required on the primary side either as this is performed inside the IC further reducing components and losses. The internal controller adjusts the MOSFET duty cycle to maintain a sinusoidal input current and therefore high power factor and low harmonic currents.

The LNK406EG also provides a sophisticated range of protection features including autorestart for open control loop and output short-circuit conditions. Line overvoltage provides extended line fault and surge withstand, output overvoltage protects the supply should the load be disconnect and accurate hysteretic thermal shutdown ensures safe average PCB temperatures under all conditions.

In any LED luminaire the driver determines many of the performance attributes experienced by the end customer (user) including startup time, dimming, flicker and unit to unit consistency. For this design a focus was given to compatibility with as wider range of dimmers and as large of a dimming range as possible, at both 115 VAC and 230 VAC. However simplification of the design is possible for both single input voltage operation, no dimming or operation with a limited range of (higher quality) dimmers.

This document contains the LED driver specification, schematic, PCB diagram, bill of materials, transformer documentation and typical performance characteristics.

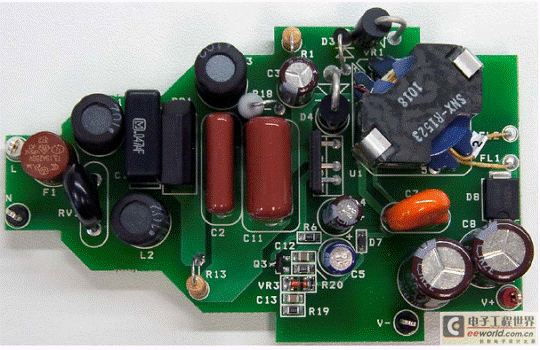

图4.TRIAC调光14W LED驱动器参考设计外形图

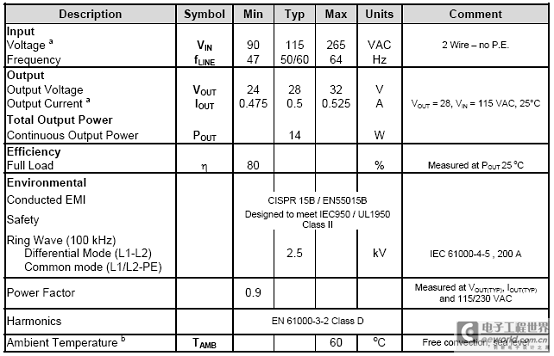

参考设计电源指标:


图5.TRIAC调光14W LED驱动器参考设计电路图

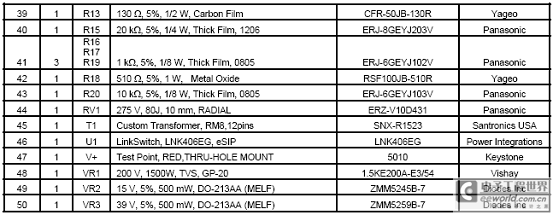

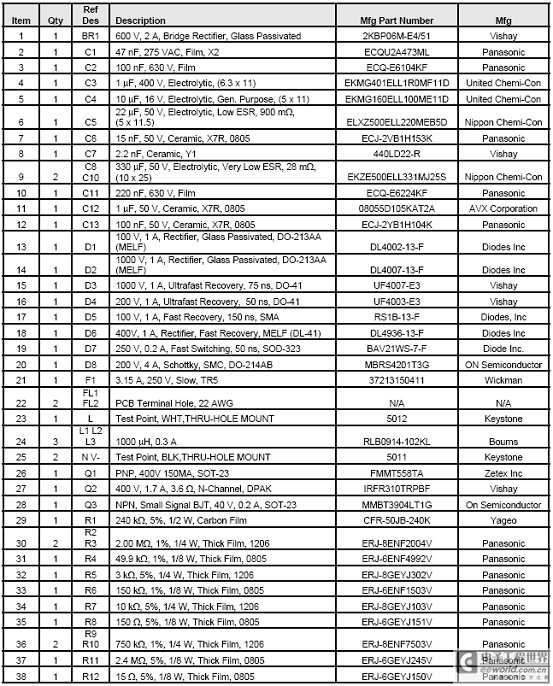

参考设计材料清单(BOM):

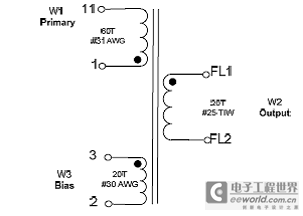

图6.变压器电连接图
